AX3000 Gigabit Wi-Fi 6 Mesh Router
Model: WR3000
● Super-Fast AX3000 Wi-Fi 6● 1.3 GHz Dual-Core Cortex-A53 CPU● 4× 10/100/1000Mbps Ethernet Ports● 160 MHz Channel Width● DL/UL OFDMA and DL/UL MU-MIMO● Wireguard/OpenVPN/L2TP/PPTP VPN Server and Client● Cudy Mesh● IPv4/IPv6● TR069/TR098/TR181/TR111
Specifications


Model
WR3000
Hardware Features
Processor
1.3 GHz Dual-Core ARM Cortex-A53 CPU
Flash / DDR
16 MB NOR / 256 MB DDR3
Antennas
4 × Fixed Omnidirectional Antennas

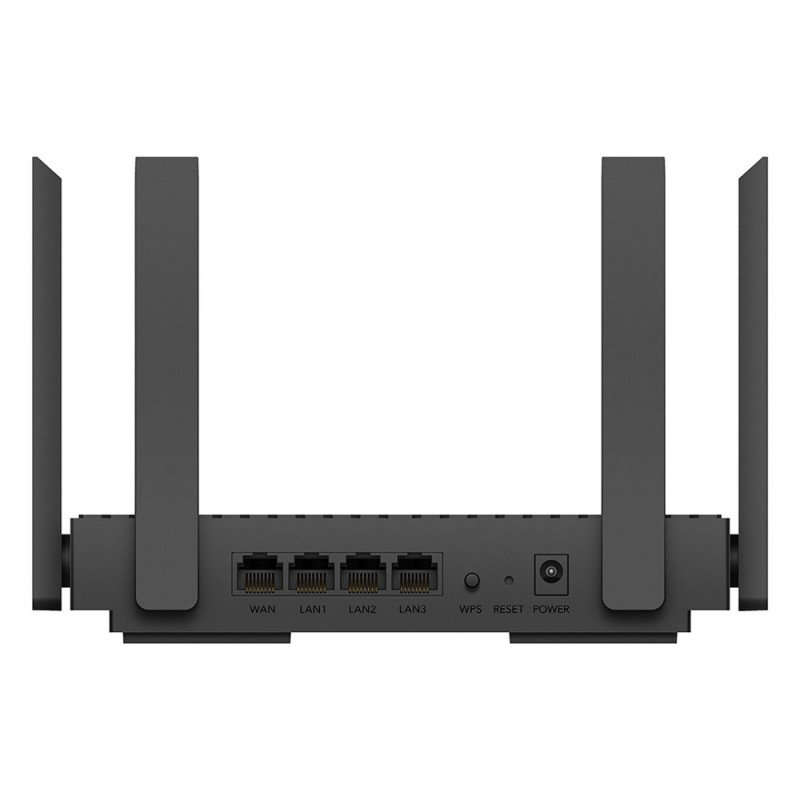

Ethernet Ports
1 × 10/100/1000 Mbps WAN Port
3 × 10/100/1000 Mbps LAN Ports
Buttons
WPS Button, Reset Button
External Power Supply
12 V / 1 A
Dimensions (W x D x H)

180*107*35 mm (Not Include Antennas)
 200*117*35 mm (Include Antennas)

Wireless Features
Wireless Standards
IEEE 802.11ax/ac/n/a  5 GHz
IEEE 802.11ax/n/b/g  2.4 GHz
Wireless Frequency
5 GHz, 2.4 GHz
Wireless Bandwidth
20/40/80/160 MHz
Signal Rate
2402 Mbps (5 GHz), 574 Mbps (2.4 GHz)
Compatible with 802.11a/b/g/n/ac Wi-Fi standards
Transmit Power
CE: <20 dBm (2.4 GHz), <23 dBm (5 GHz)
FCC: <30d Bm (2.4 GHz & 5 GHz)
Wireless Modes
Enable/Disable Wireless Radio, WMM
Wireless security
WPA-PSK, WPA2-PSK, WPA3-SAE WPA-PSK/WPA2-PSK, WPA2-PSK/WPA3-SAE
Other Features
UL/DL OFDMA, UL/DL MU-MIMO, Beamforming, Mesh
Software Features
VPN Server and Clinet
Wireguard/OpenVPN/L2TP/PPTP
DNS over TLS
Cloudflare/Google/Quad9
WAN Type
Dynamic IP/Static IP/PPPoE
DHCP
Server, DHCP Client List, Address Reservation
Dynamic DNS
Compatible with 15 more DDNS providers
Guest Network
2.4 GHz guest network × 1
5 GHz guest network × 1
NAT
Port Forwarding, Port Triggering, UPnP, DMZ
Others

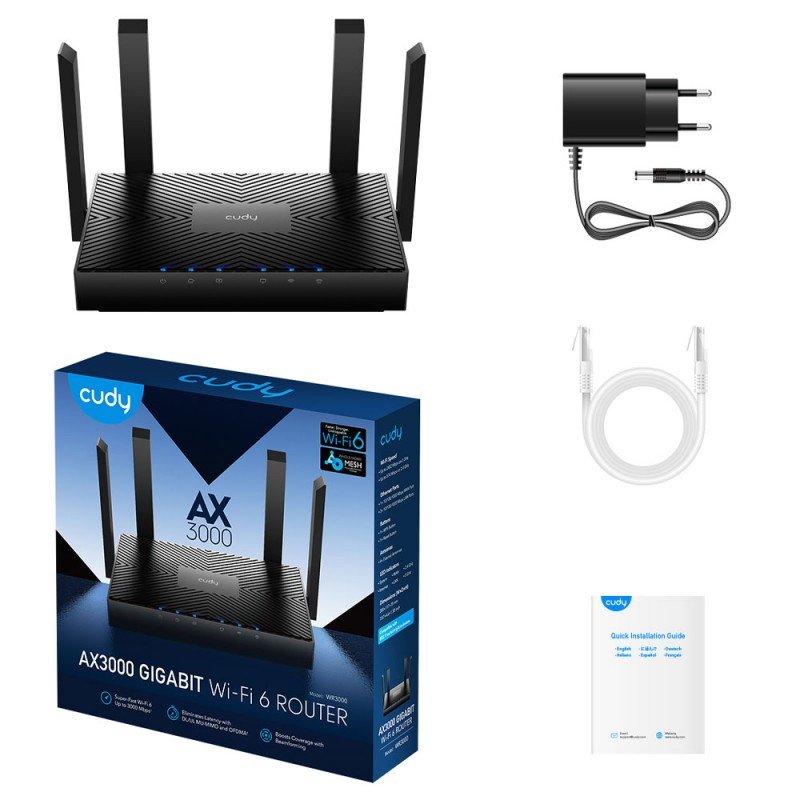

Package Content
Wi-Fi Router
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
Environmental Requirements
Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)Operating Humidity: 10% ~ 90% non-condensingStorage Humidity: 5% ~ 90% non-condensing
System Requirements

Windows, macOS, Android, iOS, or other OS with networking capability
Firefox, Chrome, Safari, Edge, or other up-to-date web browsers
Cable/DSL/ONT modem or other internet source devices
Internet subscription with ISP or carriers
